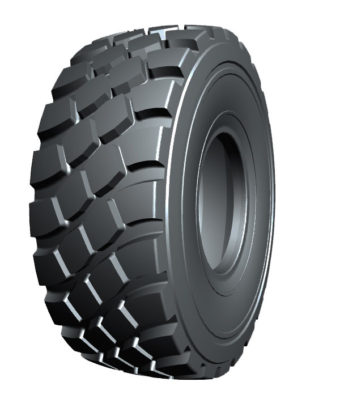

Radial OTR

mt111

MT111

Classic E3/L3 tread pattern

Fine tuned for enhanced stability, lifetime, smooth running.

Wear and Cut resistant compounds

Suitable for Loader and dumper applications

Reinforced scuff bands for improved sidewall protection

Size Type Rating TRA
Code
Load Index
Speed Symbol
Rim   Tread
Depth
Overall
Diameter
Section
Width
  Inflation
Pressure
  Loading
Capacity
  Speed
(Km/h)
17.5R25 TL ** E3 167B 25-14.00 mm 27 1348 445 kPa 525 Kg 5450 Km/h 50
in. 34/32 55,25 18,24 psi 76 lbs 12000 mph 30
L3 182A2 mm 27 1348 445 kPa 650 Kg 8500 Km/h 10
in. 34/32 55,25 18,24 psi 94 lbs 18700 mph 5
20.5R25 TL ** E3 177B 25-17.00 mm 31 1493 521 kPa 525 Kg 7300 Km/h 50
in. 39/32 61,19 21,35 psi 76 lbs 16100 mph 30
L3 193A2 mm 31 1493 521 kPa 650 Kg 11500 Km/h 10
in. 39/32 61,19 21,35 psi 94 lbs 25400 mph 5
23.5R25 TL ** E3 185B 25-19.50 mm 41 1617 597 kPa 525 Kg 9250 Km/h 50
in. 52/32 66,27 24,47 psi 76 lbs 20400 mph 30
L3 201A2 mm 41 1617 597 kPa 650 Kg 14500 Km/h 10
in. 52/32 66,27 24,47 psi 94 lbs 32000 mph 5
26.5R25 TL ** E3 193B 25-22.00 mm 38 1750 673 kPa 525 Kg 11500 Km/h 50
in. 48/32 71,72 27,58 psi 76 lbs 25400 mph 30
L3 209A2 mm 38 1750 673 kPa 650 Kg 18500 Km/h 10
in. 48/32 71,72 27,58 psi 94 lbs 40800 mph 5
29.5R25 TL ** E3 200B 25-25.00 mm 42 1874 749 kPa 525 Kg 14000 Km/h 50
in. 53/32 76,80 30,70 psi 76 lbs 30900 mph 30
L3 216A2 mm 42 1874 749 kPa 650 Kg 22400 Km/h 10
in. 53/32 76,80 30,70 psi 94 lbs 49400 mph 5
