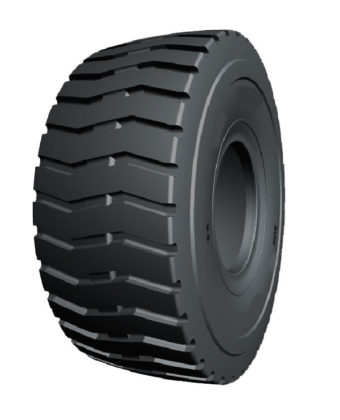

Radial OTR
Optimized E3 Rock tread pattern
Fine-tuned for enhanced traction, stability. smooth running & lifetime
Wear, Cut & Heat resistant compounds for optimal performance
Suitable for Scraper applications
Reinforced sidewall for improved stability and protection
| Size | Type | Rating | TRA Code |
Load Index Speed Symbol |
Rim | Tread Depth |
Overall Diameter |
Section Width |
Inflation Pressure |
Loading Capacity (Kg) |
Speed (Km/h) |
||||
| 33.25R35 | TL | ** | E3 | 212B | 35-27.00 | mm | 43,4 | 2222 | 861 | kPa | 525 | Kg | 20000 | Km/h | 50 |
| in. | 55/32 | 87,48 | 19,84 | psi | 76 | lbs | 44100 | mph | 30 | ||||||
| 37.25R35 | TL | ** | E3 | 218B | 35-31.00 | mm | 47,4 | 2389 | 946 | kPa | 525 | Kg | 23600 | Km/h | 50 |
| in. | 60/32 | 94,06 | 19,84 | psi | 76 | lbs | 52000 | mph | 30 |
