Radial OTR

mt141

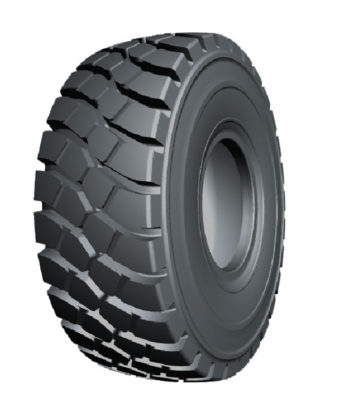

MT141

Optimized E4/L4 tread pattern

Fine-tuned for enhanced stability, traction, footprint, life time and smooth running

Wear, Cut and Heat resistant compounds for optimal performance

Suitable for Loader & Dumper applications

Reinforced sidewall for improved stability and protection

Size Type Rating TRA
Code
Load Index
Speed Symbol
Rim   Tread
Depth
Overall
Diameter
Section
Width
  Inflation
Pressure
  Loading
Capacity
  Speed
(Km/h)
23.5R25 TL ** E4 185B 25-19.50 mm 55 1660 600 kPa 525 Kg 9250 Km/h 50
in. 69/32 68,03 24,59 psi 76 lbs 20400 mph 30
L4 201A2 mm 55 1660 600 kPa 650 Kg 14500 Km/h 10
in. 69/32 68,03 24,59 psi 94 lbs 32000 mph 5
26.5R25 TL ** E4 193B 25-22.00 mm 55 1788 685 kPa 525 Kg 11500 Km/h 50
in. 69/32 73,28 28,07 psi 76 lbs 25400 mph 30
L4 209A2 mm 55 1788 685 kPa 650 Kg 18500 Km/h 10
in. 69/32 73,28 28,07 psi 94 lbs 40800 mph 5
29.5R25 TL ** E4 200B 25-25.00 mm 57,5 1906 760 kPa 525 Kg 14000 Km/h 50
in. 72/32 78,11 31,15 psi 76 lbs 30900 mph 30
L4 216A2 mm 55 1660 600 kPa 650 Kg 22400 Km/h 10
in. 69/32 68,03 24,59 psi 94 lbs 49400 mph 5
