Bias OTR

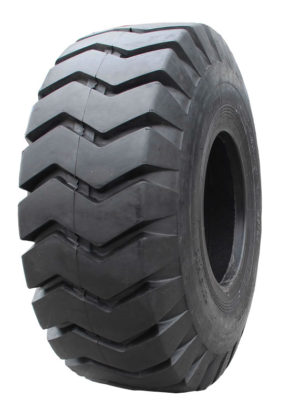

Classic non-directional ROCK tread design
Wear and cut resistant compounds
Reinforced side wall for enhanced protection
Optimal lug to void ratio for enhanced traction, lifetime and protection
Technical Data
| Size | PR | Overrall Diameter (mm) |
Section Width (mm) |
Rim | Max Load capacity (kg) 10km/h – 50km/h |
Inflated Pressure (kpa) 10km/h – 50km/h |
Pattern |
|---|---|---|---|---|---|---|---|
| 14.00-24 | 28 | 1370 | 375 | 10.00 | 10000 – 5600 | 925 – 650 | |
| 16.00-25 | 32 | 1495 | 430 | 11.25/2.0 | 12500 – 7300 | 875 – 650 | |
| 18.00-25 | 40 | 1615 | 500 | 13.00/25 | 17000 – 9750 | 950 – 700 | |
| 15.5-25 | 16 | 1275 | 395 | 12.00/1.3 | 6750 – 3850 | 525 – 400 | |
| 17.5-25 | 20 | 1350 | 445 | 14.00/1.5 | 8250 – 5000 | 575 – 400 | |
| 20.5-25 | 24 | 1490 | 520 | 17.00/2.0 | 10300 – 6700 | 525 – 400 | |
| 23.5-25 | 28 | 1615 | 595 | 19.50/2.5 | 13600 – 8750 | 550 – 400 | |
| 26.5-25 | 32 | 1750 | 675 | 22.00/3.0 | 17000 – 11200 | 550 – 425 | |
| 29.5-25 | 34 | 1875 | 750 | 25.00/3.5 | 20000 – 13200 | 525 – 400 |
